interproscan output file

docs/user_guide/example_genomics/func_annots/interpro.rst

@@ -54,11 +54,14 @@ The top section of this page provides multiple methods for providing results fil

   "Server path", "sites/default/files/Citrus_sinensis-orange1.1g015632m.g.iprscan.xml"
   "Analysis", "InterPro Annotations of C. sinensis v1.0"
-  'Load GO terms to the database', 'checked'
+  'Load GO terms to the database', 'unchecked'
   "Query Name RE", ""
   "Use Unique Name", "unchecked"
   "Query Type", "mRNA"

+In order for GO terms to be imported, the Gene Ontology must be loaded on your site: for this tutorial, we leave the box unchecked.
+
+
 .. note::

   For the **Server path** we need not give the full path.  Because we downloaded the files into the Drupal directory we can leave off any preceding path and Tripal will resolve the path.  Otherwise we could provide the full path.
@@ -70,3 +73,8 @@ Clicking the **Import InterProScan file** will add a job which we can manually e
 ::

     drush trp-run-jobs --username=administrator --root=$DRUPAL_HOME
+
+

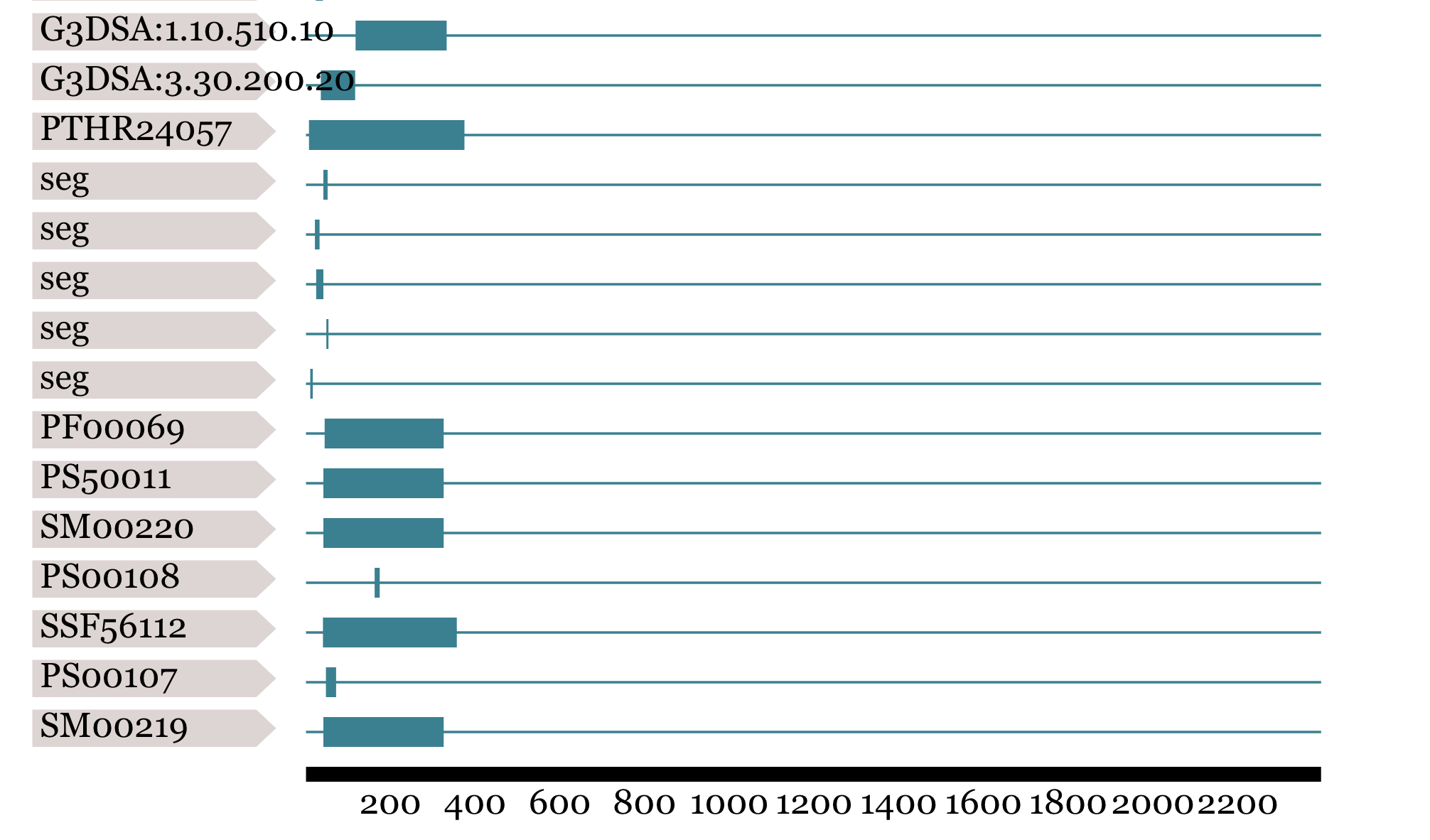

+After the job is run, our InterPro field will be populated on the mRNA page with an annotation diagram:
+
+.. image:: interpro2.png
